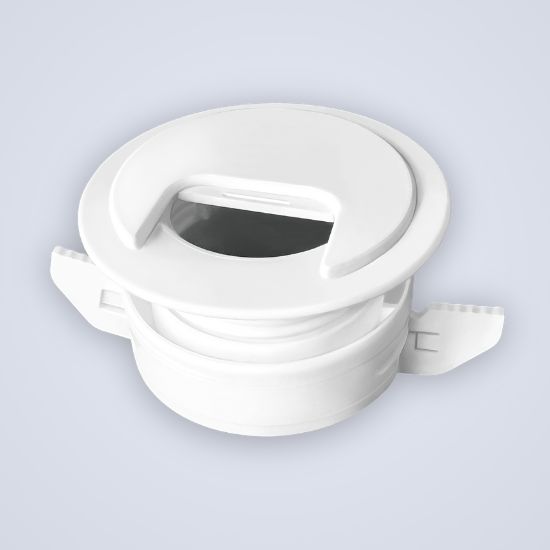

The Twist Lock Grommet® is a Patented self securing wire and cable grommet with a clean finished look.
It self locks with just a few turns of the wrist, no tools, and can be used on all surfaces with varying thickness, from 3/8″ to 1″. These quality wire and cable management grommets made in the USA are reusable for relocations.
Welcome to our site
Your interest in the “Twist Lock Grommet” is much appreciated.
Our product is fast becoming the “Go to” wire/cable grommet in the Residential and Commercial markets, especially within the Trades.
Patented, made in the USA, “Tool-free” self Securing/Locking mechanism, installs in minutes, with just a few turns of the wrist and simplifies the running of wires/cables, with no snags or damage as they glide through the totally unobstructed pass thru. The adjustable cap “Slider” snaps off before installation and snaps back on after cables/wires are run only once, not twice.
Overall, a major save of time and effort for professional installers and DIY projects.
Thank you.
Tony Pagoto
Inventor, Founder/CEO of JBL Products, Inc.
Solution:
Twist Lock Grommet®
Features/Uniqueness:
- Patented, “Principal” Trademark
- Self secures and locks to surfaces, no fall outs
- Encases/protects wires and cables for the full unobstructed pass through

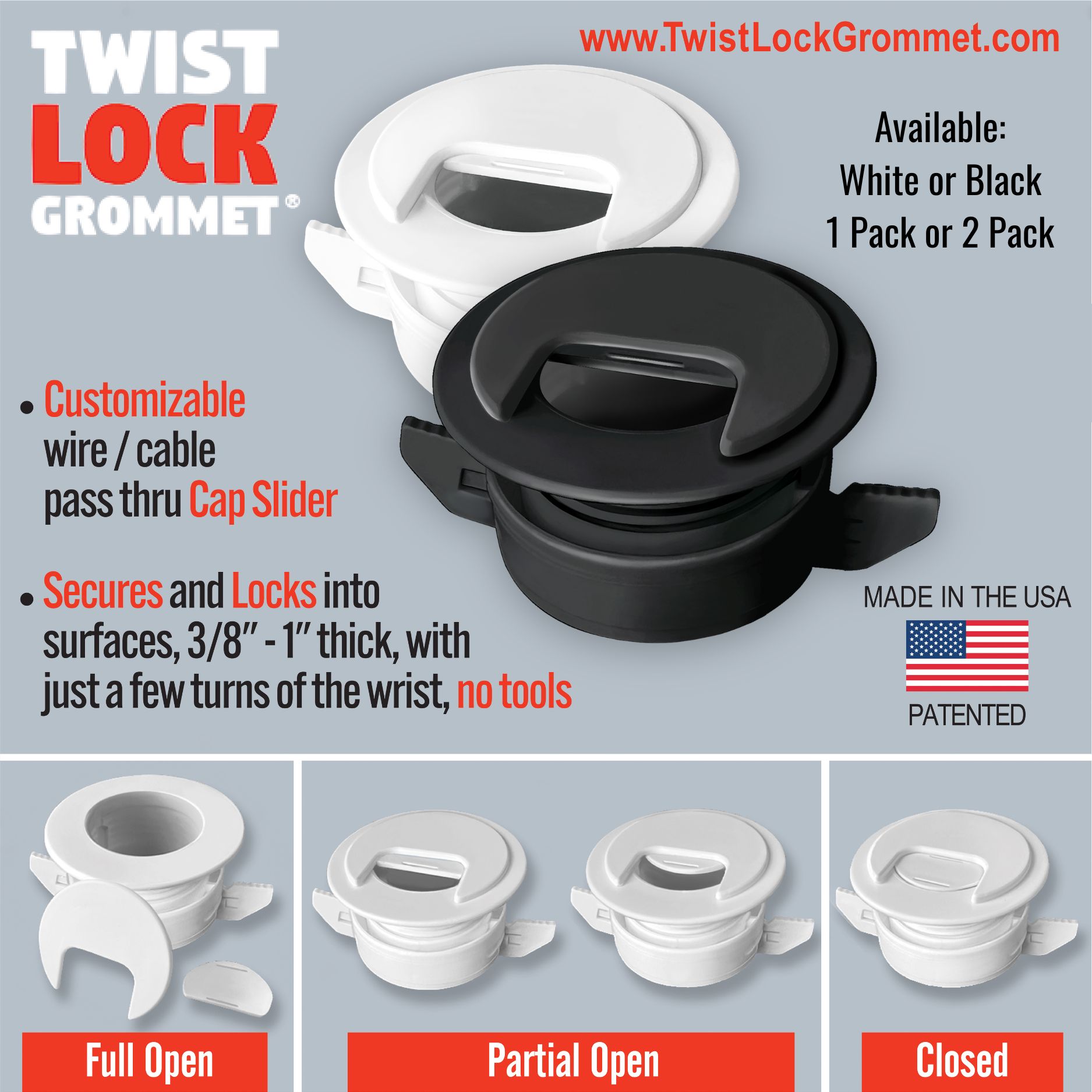

- Customizable cap slider
- No tools used to lock, just a few turns of the wrist
- Wires and cables easily slide through the pass thru without snags or damage
- Wires and cables are run through the pass thru only. The cap, with an adjustable slider opening, snaps off before installation and then snaps back on after the wires and cables have been run. Only one run, not two runs. A major simplification and time saver
- Works for all surfaces 3/8” to 1” thick
- Indoor/outdoor use, reusable for relocations
- A professional and problem-free installation
- “Form follows Function”, at its best
This self-locking wire and cable management grommet is great for use in walls, ceilings, floors, computer workstation desk tops, entertainment centers and endless other applications.
Installation:
A unique and better grommet to do the job right.
Once surface opening made, no tools used. Grommet wings are retracted and then activated for insertion into surface and securing/locking into position by simply turning the pass through tube. Once wires/cables in position, place finishing cap on tube. Grommet is reusable for future relocations.
Product Specifications:
Length: 1 3/4″
Width of outer surface rim: 2 3/4″
Wire/Cable pass through inner diameter: 1 1/2″
Material: Precision molded High Impact Polystyrene
Weight: 1.3 oz
Mounting surface thickness: 3/8″ – 1″
Hole size: Use top side of finishing cap as a template to draw hole
Hole saw bit size: 2 3/8″ or use other type power/hand saw
Note: For installations with back of surface access, you may also use a smaller 1 7/8″ hole and twist the collar, with or without the wings removed, into the pass through tube until secure and snug
Colors: White, Black
Packaging: 1 Pack, 2 Pack Grommet(s) in pre printed poly bag with hang hole, including QR code and installation steps
